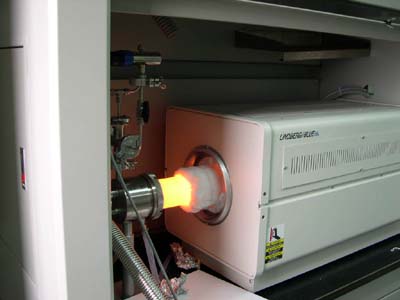

Thermal chemical vapor deposition
Epitaxial GaN nanorods on GaN substrate
GaN nanobrushes in the (a) medium magnification showing presence of 2- and 4-fold nanostructures and high magnification (b) 4S-fold, (c) 4M-fold , (d) 4M*1-fold (e) 2S-fold subsymmetries.
InN nanorods
The morphology of InN nanorods

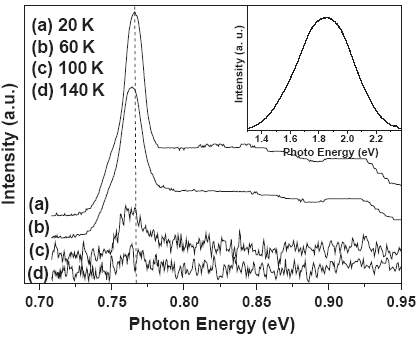

Temperature dependent PL spectra of the black InN nanorods measured at (a) 20 K, (b) 60 K, (c) 100K and (d) 140 K. The dashed line labels the peak position of 0.766 eV obtained at 20 K. The inset shows the PL spectrum from the optically brown InN nanorods measured at RT using the micro PL setup (Renishaw 2000).
AlN nanotips
The SEM images of AlN nanotips (a) plan view, (b) cross-sectional view

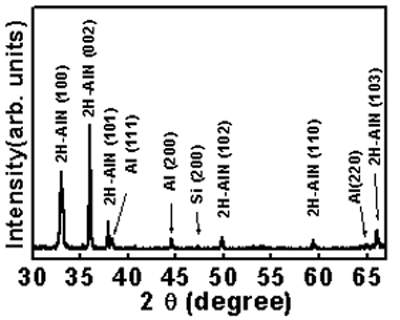

The x-ray diffraction pattern of AlN nanotips
